Triple Ball Trailer Hitch Mount with Tow Hook Fits 2 Inch Receiver

Description:

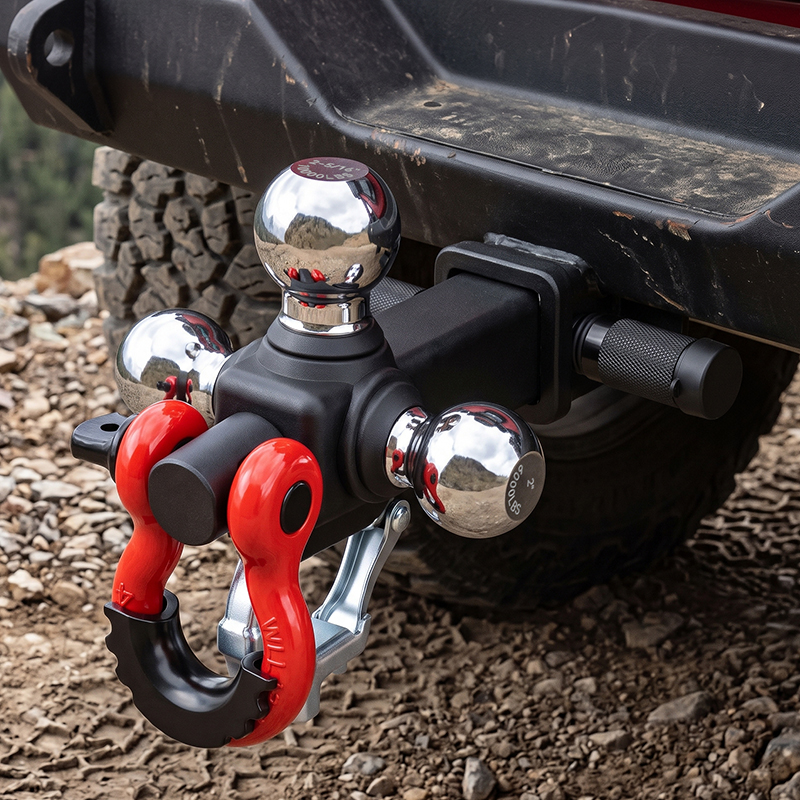

Forged and Welded Carbon Steel, Not Cast Iron: Every mount in this series is built from 45 grade carbon steel rather than cast iron. The three tow balls are forged, the shank and ball platform are welded into a single body, and each surface gets the finish its job needs. The trailer balls are chrome plated for a smooth low friction coupler surface that resists flattening and galling. The body, tow hook and swivel shackle are galvanized and then powder coated black against road salt, mud and repeated recovery pulls. There is no thin stamped plate and no stacked adapter in this assembly, so the three ball positions stay in line inside the receiver and the mount keeps its shape after years of coupler movement.

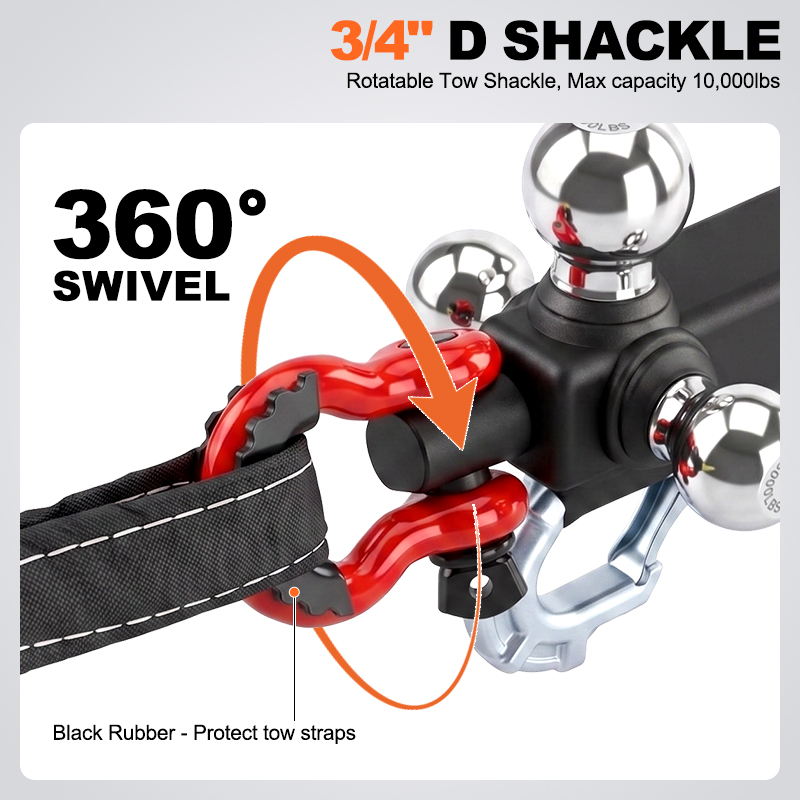

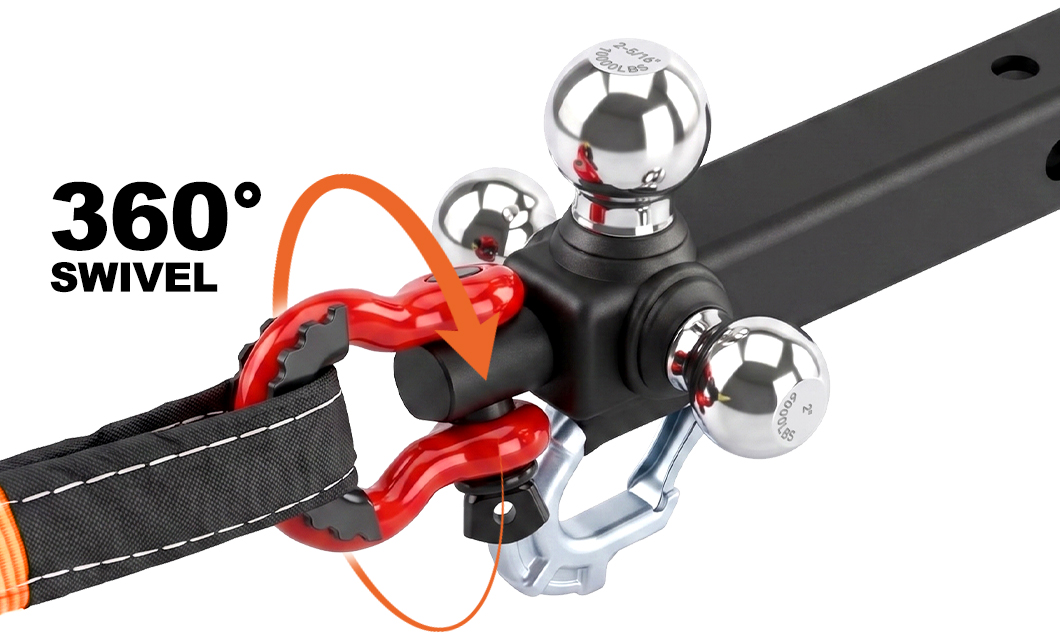

Load Ratings You Can Put in Writing: Ratings are listed by ball size so every trailer you handle can be matched. The 1-7/8 inch ball is rated 2000 lbs, the 2 inch ball 6000 lbs and the 2-5/16 inch ball 10000 lbs working load limit. The integrated tow hook carries a 10000 lbs working load limit, and the G209 bow shackle is a 3/4 inch US pattern body with a 7/8 inch pin rated 10472 lbs, or 4.75 tonnes. Total payload listed for the assembly is 30000 lbs. The shackle rides on a 360 degree swivel pivot, so a recovery pull or an uneven departure angle does not bind it against the mount. Plated and coated surfaces are salt spray tested, and load validation is part of production rather than a one off check.

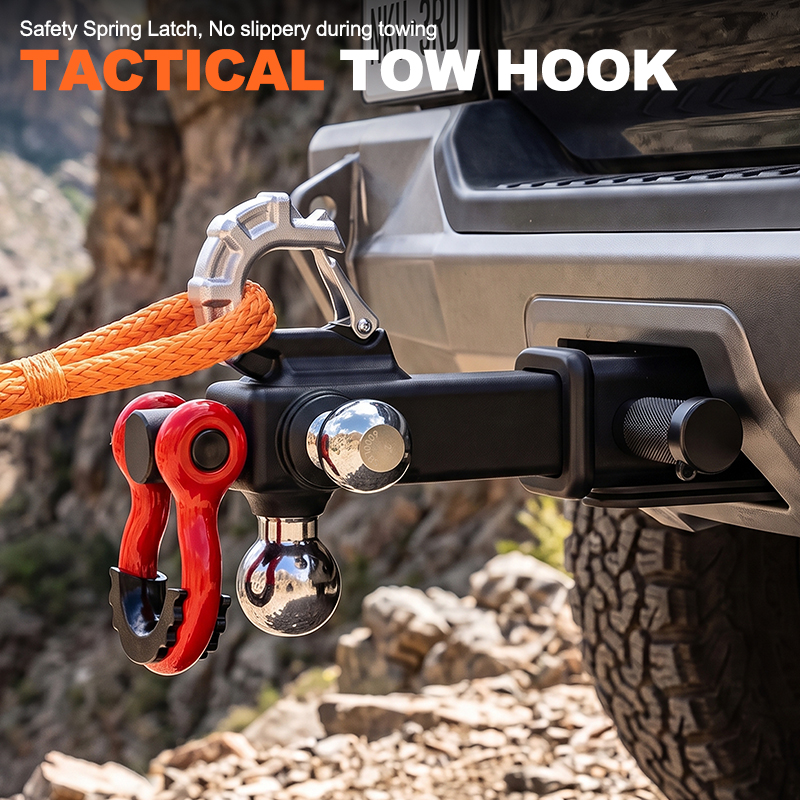

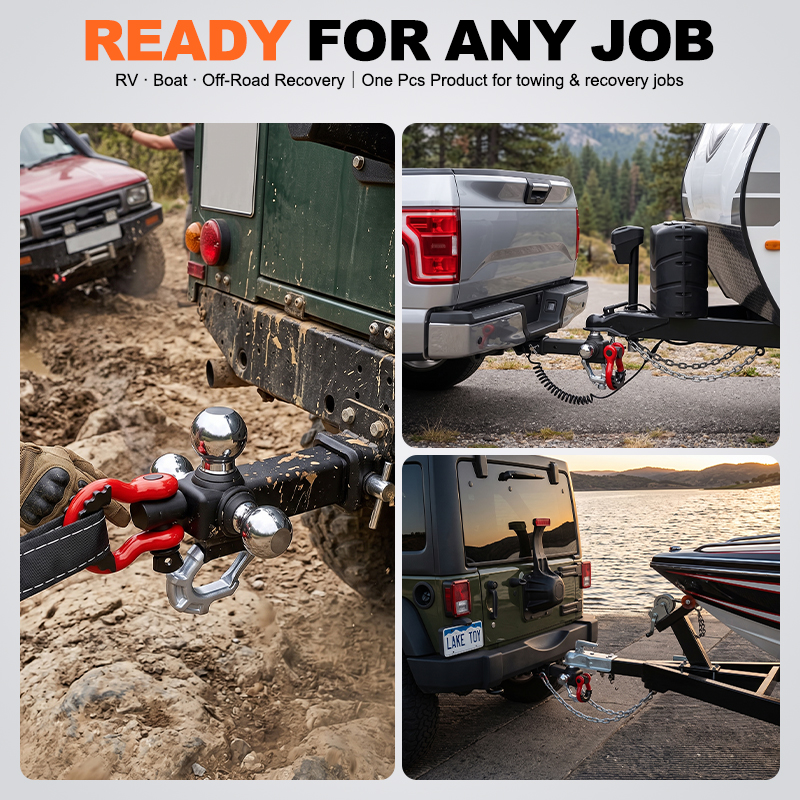

Where This Mount Actually Gets Used: Boat trailers, utility trailers, cargo trailers and campers are the everyday jobs. Three coupler sizes sit on one mount, so a trailer change does not mean hunting for a second ball mount. Farm and landscape equipment, flatbed and van transport and shared trailer fleets benefit the same way, because one part covers trailers ordered with different couplers. Off road and job site users get the second function. The swivel shackle and the tow hook turn the mount into a rated recovery point at the rear of the vehicle, so a stuck truck can be pulled free without adding a separate shackle receiver. It also saves space, because one part replaces three single ball mounts in the vehicle or in the shop.

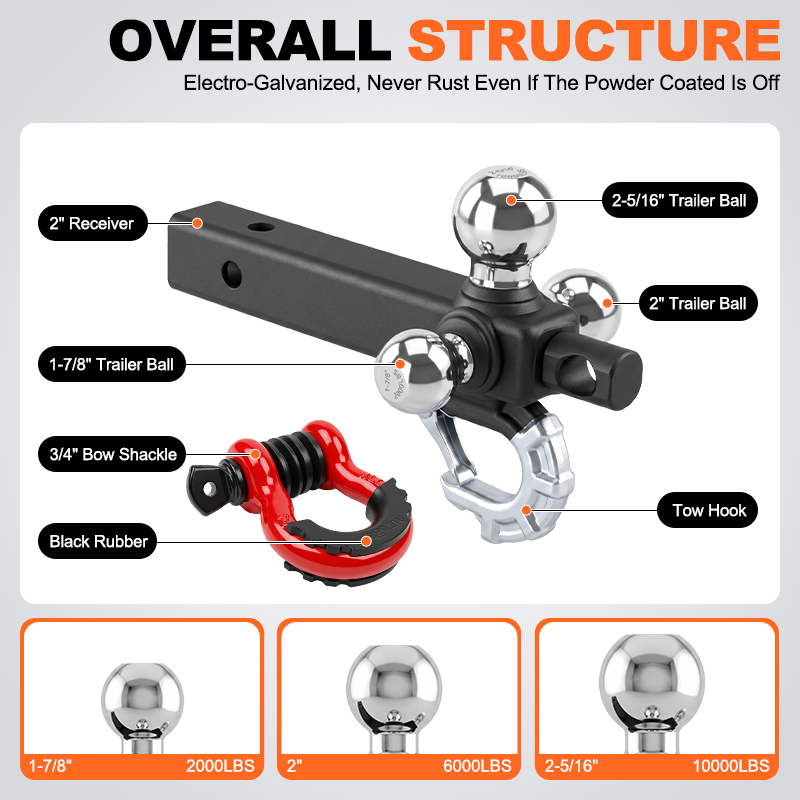

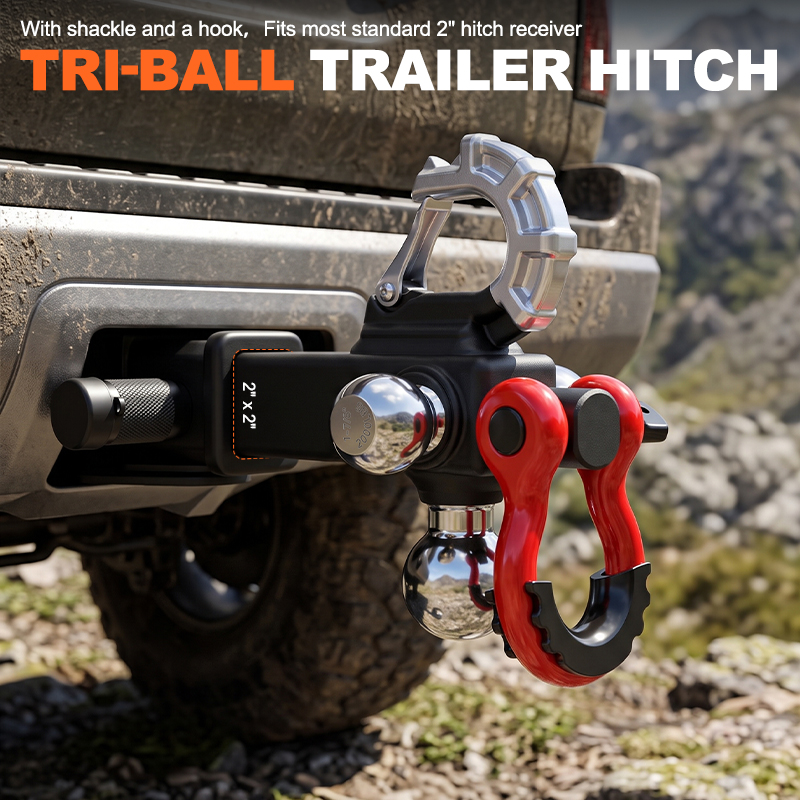

Fits Standard 2 Inch Receivers: The shank is a 2 inch square slide in design that fits standard 2 inch receivers and is secured with the supplied 5/8 inch locking hitch pin through the 16 mm pin hole. Fitting is a slide, line up and lock sequence, with no drilling and no welding on the vehicle. The three trailer balls are 1-7/8 inch, 2 inch and 2-5/16 inch, covering the couplers found on utility trailers, boat trailers, campers and light commercial trailers. Coupler height follows the ball size and how the mount sits in the receiver, so a check against the trailer tongue before tightening is enough. The shackle can be clocked around its 360 degree pivot to face the direction the recovery line comes from.

Batch Consistency from the Production Line: Each batch runs from the same steel specification on the same finishing line, so chrome thickness on the balls and powder coating on the body stay uniform from order to order. Dimensions and weld positions are checked in line, finished goods are inspected before packing, and load ratings are validated so the numbers on the label match the numbers on the part. Custom logo, material, size, colour and packaging are supported, along with drawing based and sample based development. Every mount is boxed on its own to protect the chrome in transit. Technical drawings, material details and test reports are issued with the goods, and a warranty covers the assembly against manufacturing defects.

Safety That Holds When the Load Moves: Forged tow balls keep their shape where cast balls can chip, flatten or gall, and the welded body holds the three ball positions in line so nothing shifts under a moving load. The mount is held in the receiver by a 5/8 inch locking hitch pin, so it cannot walk out over a long drive. The recovery end uses a rated G209 bow shackle with a 7/8 inch screw pin rather than unrated hardware, and the 360 degree swivel pivot keeps a pull in line instead of side loading the pin. Ratings are published per ball size, so the user works to a stated limit instead of an estimate.

Service Life Measured in Years of Coupler Wear: Service life comes from the steel and the coatings. Forged 45 grade carbon steel resists deformation far better than cast iron, so the balls stay round and the coupler keeps a clean seat over years of use. The balls are chrome plated for low friction and wear resistance, while the body, hook and shackle carry two layers of protection, galvanizing under powder coating, and are salt spray tested against corrosion. Because the three balls share one welded body, there is no adapter stack to loosen, no separate shank to replace and fewer parts to wear out.

One Locking Pin Covers Three Coupler Sizes: One locking pin does the whole job. The mount slides into a standard 2 inch receiver, the pin locks it in place, and three ball sizes are then ready without buying or storing extra mounts. Couplers on 1-7/8 inch, 2 inch and 2-5/16 inch trailers are covered by the same part, so switching between a boat trailer and a utility trailer takes a moment instead of a search through the toolbox. The swivel shackle adds a rated recovery point without a separate shackle receiver, and it can be turned to any angle the pull comes from. No drilling and no welding on the vehicle.

Certification and Export Paperwork in Place: The mount is manufactured to meet SAE J684, the North American safety standard for trailer coupling and towing systems, which gives buyers a recognised reference point for load and retention requirements. It carries CE marking for the European market and is produced under an ISO 9001 certified quality management system, with EEC also listed on the specification and tensile testing included in the quality programme. supports customs clearance and market entry requirements across North America, Europe, Australia and the Middle East.

Factory Supply Chain Under One Roof: Production sits in one factory, from raw steel to packed carton, so specification, finish and rating are controlled in house instead of being split across outside suppliers. The same steel grade and the same finishing line run for every batch, which keeps chrome, coating and dimensions consistent on repeat orders, and finished goods are inspected before packing. Custom logo, material, size, colour and packaging can be built into the order, and drawing based or sample based development is supported for specific requirements. Technical documentation, test reports and a warranty on the assembly give the buying side verifiable material to work with.

Q1. What is your MOQ ?

A:For stock :10 PC , Customization: Minimum order quantity ranges from 10 to 1000 pieces per product. Please consult our sales representatives for specific quantities.

Q2. Does the product meet European and American certification standards?

Our products are certified to European and American standards, including CE, ISO, and DOT certifications. Additionally, we hold dozens of design patent molds, ensuring market protection for your purchases or sales.

Q3.What are your advantages compared with others?

A: 1. With our own factory to manufacture the products, we can ensure timely products delivery

2.Owned factory, the same quality product. the best price

3. We have professional staffs, let you enjoy comfortable and effective communication

4. More efficient management in every process.

Q4.How do you control your quality?

A: 1.Selecting good steel material, producing follow the standard, proper inspection of products

2.100% finished product testing

3.Iso quality management system certificated factory

4.We accept inspection of products.

Q5. Can I order a sample with my own design /logo ?

Yes, our design team can create samples based on your sketches, images, or designs. If you have uncertainties about the product, we can first produce a 3D printed model for your review before proceeding with the formal sample production

Q6: Can I get a free sample ?

A:Because many customers want it, and development cost is too high, we cannot provide free samples, but when you place an order ,the sample cost can be refund to you .

Q7: What is your Sample Lead-Time ?

A: Within 5 working days after confirm all details. If busy season, about 7 working days.

Q8:Can I get a quote for the products I need?

Of course, you can send us an inquiry and provide product dimensions along with detailed images (front, side, back, internal structure, etc.). This will help us provide a more accurate quote. We would be happy to send you a quote.

Q9: What about the delivery day?

Typically 7 to 35 days, depending on the complexity and quantity of the product. You can confirm with us based on your specific prod，We accept 100% T/T payment before delivery, or 30% deposit and 70% before delivery.

Q10:Which kind of shipping way can choose ?

A: By air or by sea. If ship by express (UPS,DHL, FEDEX, EMS ), Shipping time 5-7 days ,except the EMS(EMS is the cheapest way but take more time ). By air : shipping time 12-15 days (the products can't less 22 KG) . By sea (has the different Time-based can choose, within 25 days, 30-35 days , 50-60 days ).some country can shipping by train or truck. you can decide suitable shipping way according to what your need.

Q11:Which kind of shipping way can choose ?

A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow

Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean.
