Snatch Block Winch Pulley Heavy Duty for Synthetic Rope and Steel Cable

Description:

Forged Plates, Polymer Sheave: The housing is built from high carbon drop forged steel side plates, six millimetres thick. Forging keeps the grain of the steel running through the plate, so the housing takes an impact load as one piece. An electrostatic powder coat covers the outer faces, the edges and the inner walls. The running surface is a self lubricating aerospace polymer sheave. It carries the rope on a smooth, burr free throat, it needs no grease, and it does not corrode. A sealed bearing set sits between the plates on a hardened axle pin, and the axle pin is what moves the pull from the sheave into the plates.

Where The 14 Ton Figure Stops: Two figures describe this block. Maximum breaking strength is 14 ton, or 30,864 pounds. Working load limit is 4.67 ton, or 10,288 pounds, and that is the figure to rig against. The axle pin is proof loaded to 150 percent of its rating before assembly. The sheave turns on sealed bearings, so a doubled line runs freely and the block returns a two to one mechanical advantage at the anchor. A ten thousand pound winch line in a single leg becomes twenty thousand pounds of pull at the block, while the motor carries half the load.

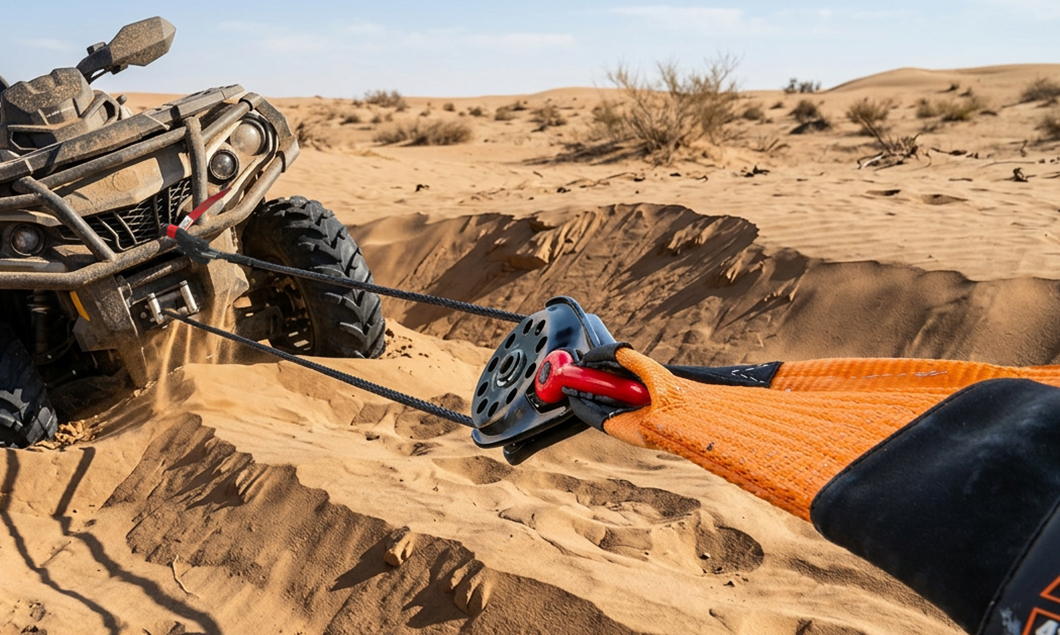

Mud, Sand And Sideways Pulls: This is a recovery accessory for vehicles that go off the road. It suits self recovery from mud, sand and soft ground, where a straight line cannot reach a solid anchor. It suits angled pulls where the winch line has to be redirected around a tree or a rock, and double line rigging where the load is heavier than one line can move. Commercial towing and fleet recovery work use the same block, because the anchor end of the rig is where the load concentrates. It fits Jeep style 4x4 vehicles, pickup trucks, SUVs and ATVs that carry a winch.

Rope Size, Shackle Size, Fit: The sheave groove takes 3/8 inch synthetic rope and 3/8 inch steel cable, so one block covers both rope types. The ring hole measures 2.02 inch and accepts the common 3/4 inch shackle, the pin size used on most recovery shackles. Groove diameter is 0.5 inch, wide enough for the rope to sit in the throat without pinching. The side plates rotate on the axle pin, so the block opens, drops onto the line and closes again wherever the anchor is. The winch line stays threaded, and the shackle pin locks the plates shut.

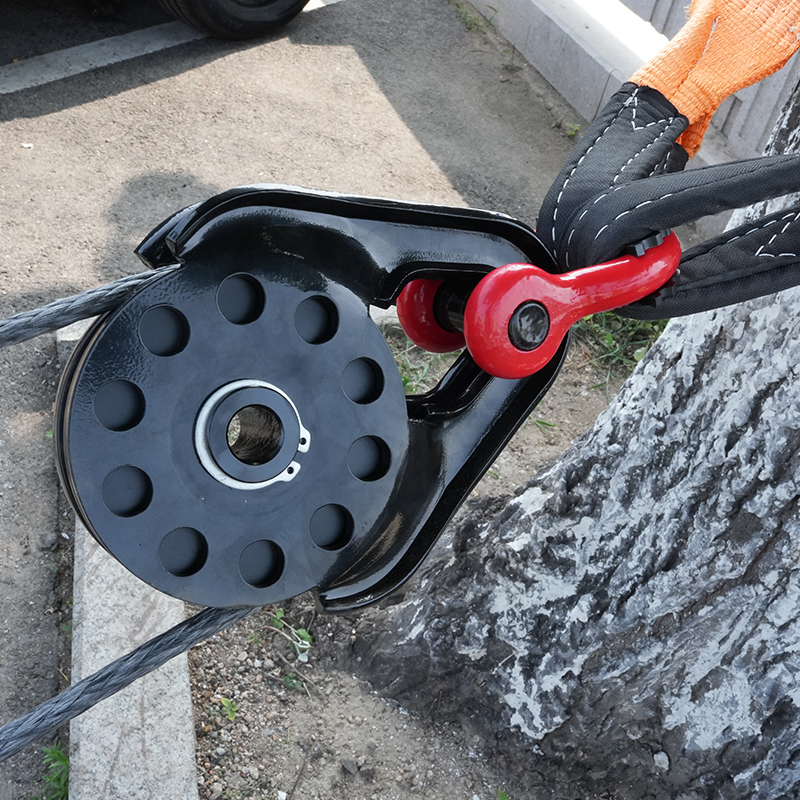

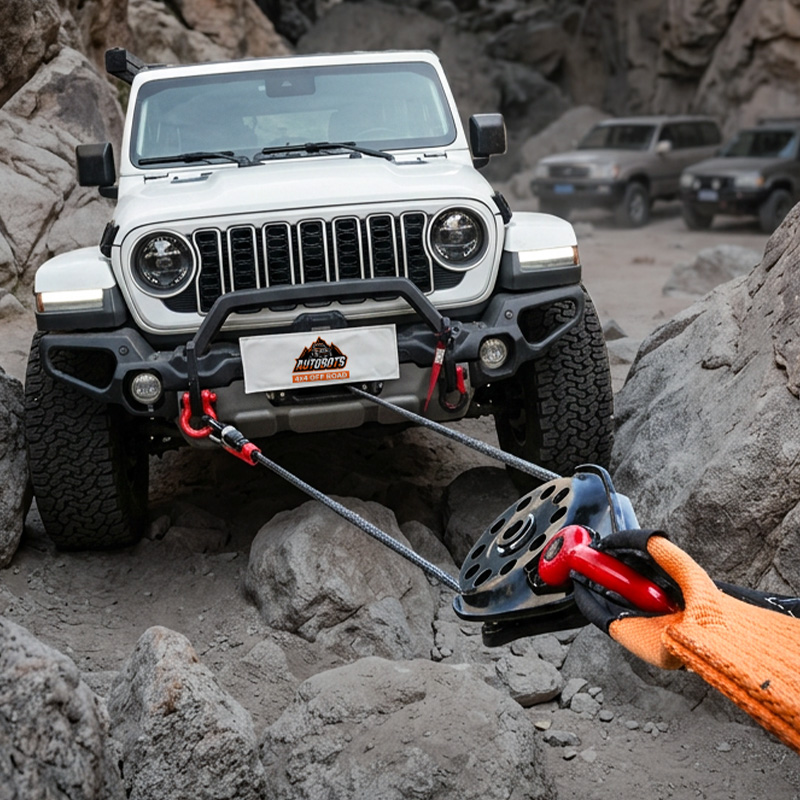

The Turn Happens At The Block: The block hangs from the anchor through the ring hole at the top. The winch line enters the groove, wraps the sheave, and leaves the block parallel to the line it came in on. That turn is the whole job of the block: the vehicle moves back along its own track, and the direction change stays at the anchor end of the rig. The ring hole sits above and clear of the sheave, so the anchor shackle and the running rope hold separate contact points. The side plates enclose the groove on both faces, so the rope stays seated through slack moments in the pull, and the sheave keeps the line clear of the plate edges.

Proofed Pin, Closed Groove: The axle pin carries the full pull, and it is proof loaded to 150 percent of its rating before the block is assembled. The side plates close over the groove on both faces, so the rope cannot ride out of the throat when the line runs off axis. The ring hole sits apart from the sheave, which keeps the anchor shackle and the moving rope on separate contact points. Sealed bearings hold grit, mud and water out of the rotation, so the sheave turns freely under load. The shackle pin is the only fastener in the assembly, and it locks the plates closed.

Forged Body, Coated All Over: Drop forged carbon steel side plates carry the load at six millimetres of section thickness, and forging keeps the grain continuous through the plate. The electrostatic powder coat seals the forged surface against road salt, mud and steady sun exposure, and it covers the inner faces as well as the outer. The sheave is self lubricating aerospace polymer, so the running surface needs no grease and does not corrode. Two parts touch the rope: the polymer sheave and the axle pin. One block takes synthetic rope and steel cable.

Opens, Drops On, Locks: Rigging takes one hand. The side plates rotate on the axle pin, so the block opens along the line wherever the anchor is, and the winch line stays threaded through the fairlead and the drum while the block goes on. The rope drops into the groove, the plates swing back into line, and the shackle pin passes through the ring hole to lock them shut. The ring hole accepts the common 3/4 inch shackle, so the anchor hardware a rig already carries is enough for the job. Two to one mechanical advantage arrives with that single movement: one line in, one line back.

Marked For Its Destination Markets: The block is CE marked and built to the EU machinery directive 2006/42/EC. Production runs under an ISO 9001 quality management system. The block is tested against SAE J684, the North American standard for trailer couplings and hitches, and against SAE J2055. Tensile test records cover the breaking strength and the working load limit. The same documentation set carries DOT, GS, EEC and ROHS entries, so the block can go on sale in North America, the EU, Australia and the Middle East with the paperwork already in place.

Checked Before It Leaves: The load test is the last step in the chain, and it runs on every block: a proof load on the axle pin and a tensile check on the assembly. Third party inspection is accepted, and the record of the proof load and the tensile check travels with the parts. The document set carries the CE marking reference, the ISO 9001 certificate reference and the SAE J2055 and J684 test entries. Replacement sheaves and axle pins are supplied as single items under their own numbers.

Q1. What is your MOQ ?

A:For stock :10 PC , Customization: Minimum order quantity ranges from 10 to 1000 pieces per product. Please consult our sales representatives for specific quantities.

Q2. Does the product meet European and American certification standards?

Our products are certified to European and American standards, including CE, ISO, and DOT certifications. Additionally, we hold dozens of design patent molds, ensuring market protection for your purchases or sales.

Q3.What are your advantages compared with others?

A: 1. With our own factory to manufacture the products, we can ensure timely products delivery

2.Owned factory, the same quality product. the best price

3. We have professional staffs, let you enjoy comfortable and effective communication

4. More efficient management in every process.

Q4.How do you control your quality?

A: 1.Selecting good steel material, producing follow the standard, proper inspection of products

2.100% finished product testing

3.Iso quality management system certificated factory

4.We accept inspection of products.

Q5. Can I order a sample with my own design /logo ?

Yes, our design team can create samples based on your sketches, images, or designs. If you have uncertainties about the product, we can first produce a 3D printed model for your review before proceeding with the formal sample production

Q6: Can I get a free sample ?

A:Because many customers want it, and development cost is too high, we cannot provide free samples, but when you place an order ,the sample cost can be refund to you .

Q7: What is your Sample Lead-Time ?

A: Within 5 working days after confirm all details. If busy season, about 7 working days.

Q8:Can I get a quote for the products I need?

Of course, you can send us an inquiry and provide product dimensions along with detailed images (front, side, back, internal structure, etc.). This will help us provide a more accurate quote. We would be happy to send you a quote.

Q9: What about the delivery day?

Typically 7 to 35 days, depending on the complexity and quantity of the product. You can confirm with us based on your specific prod，We accept 100% T/T payment before delivery, or 30% deposit and 70% before delivery.

Q10:Which kind of shipping way can choose ?

A: By air or by sea. If ship by express (UPS,DHL, FEDEX, EMS ), Shipping time 5-7 days ,except the EMS(EMS is the cheapest way but take more time ). By air : shipping time 12-15 days (the products can't less 22 KG) . By sea (has the different Time-based can choose, within 25 days, 30-35 days , 50-60 days ).some country can shipping by train or truck. you can decide suitable shipping way according to what your need.

Q11:Which kind of shipping way can choose ?

A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow

Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean.
