Snatch Block Winch Pulley Block 10 Ton for Synthetic Rope Recovery

Description:

Carbon Steel Pressed And Machined: The body starts as high strength carbon steel, cut and stamped into side plates, then machined so the sheave groove runs true from shoulder to shoulder. Every steel surface is powder coated edge to edge in a finish that stands up to mud, road salt, sand and steady sun exposure. The sheave is machined, so the groove wall stays square exactly where the rope rides. Side plates rotate on the mounting pin for quick rigging, and the ring hole is cut to 2.95 inch, sized for the screw pin shackles used on 4x4 and truck recovery. Each block is assembled complete before coating, so the finish carries across the plates, the pin and the machined groove.

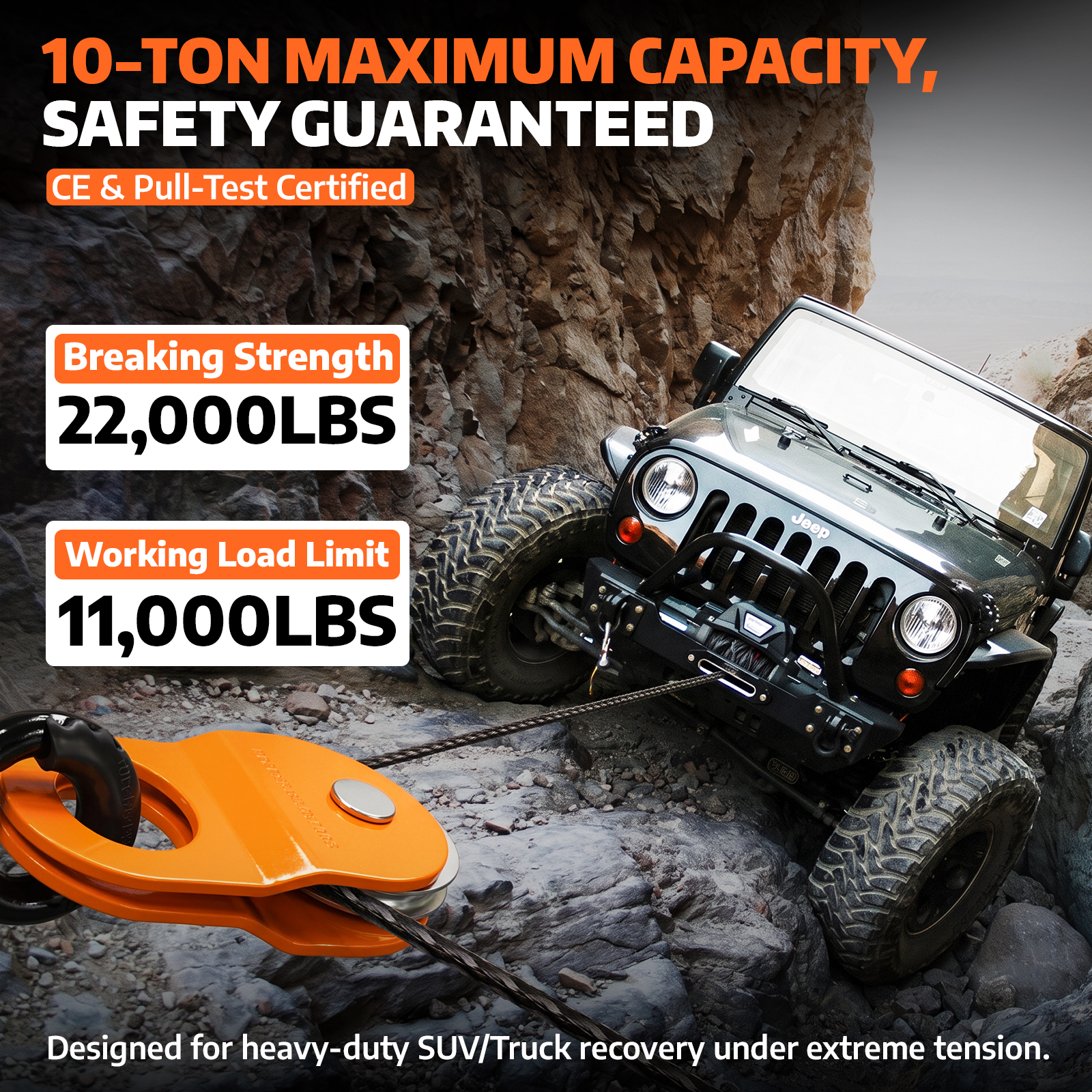

Peak Rating, Working Rating: The block carries a maximum payload rating of 22000 lbs and a working load limit of 5 ton, 11000 lbs. The 22000 lb figure is the ceiling the assembly is built around, and the 11000 lb working limit is what you rig within during normal recovery. Running the line through the block returns it to the vehicle and doubles the pull at the anchor in a 2:1 configuration, which halves what the winch motor, gearing and battery carry. The sheave, the pin and the closed circlip groove hold that doubled tension without the groove spreading, and the 2.95 inch ring hole keeps the shackle square when the pull arrives off axis.

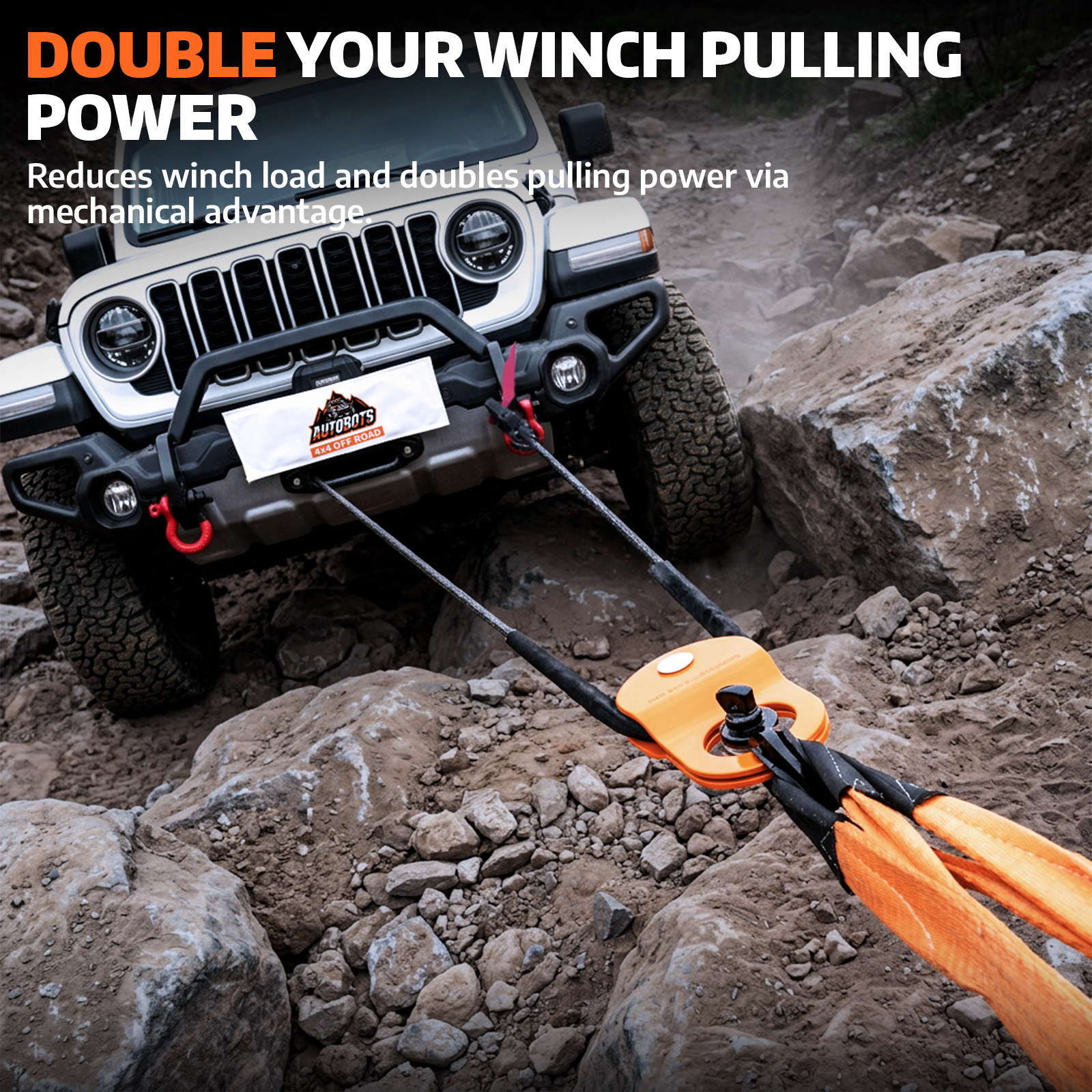

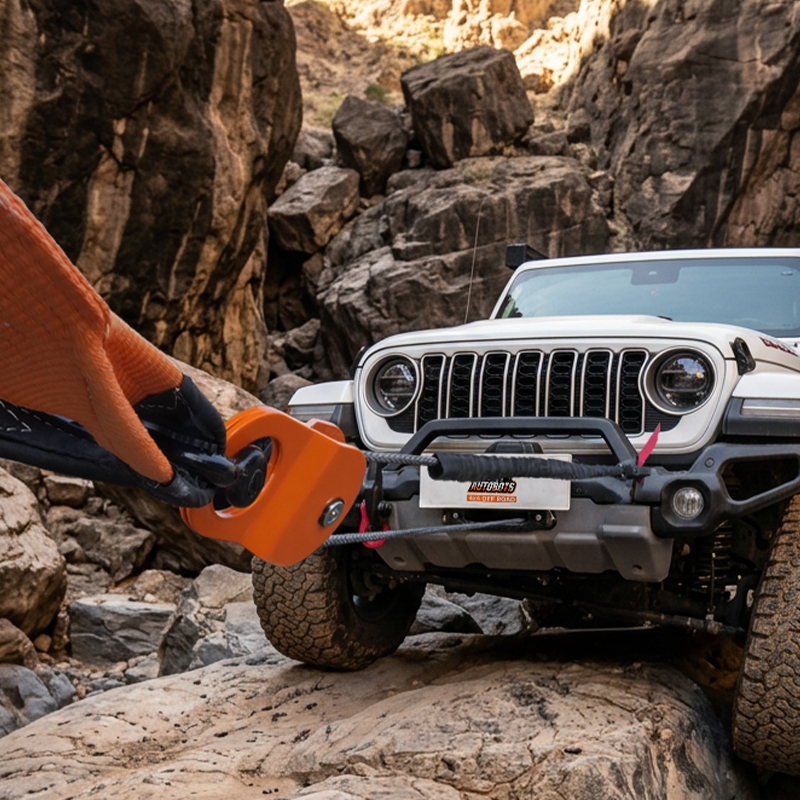

Stuck Axles And Off Line Anchors: Winch recovery seldom happens in a straight line. Mud, soft sand, loose gravel or a rutted bank takes the wheels away, and the usable anchor point is often well off to one side of the vehicle. The block sits at that angle and turns the line, so the winch pulls from where it is mounted and the vehicle comes out along the direction the anchor can take. A double line rig through the block halves what the winch has to produce, which is what moves a loaded truck, a tractor or a trailer out of a ditch. The same geometry covers a cross ditch crossing, a bank climb, and a dead vehicle dragged onto a trailer bed.

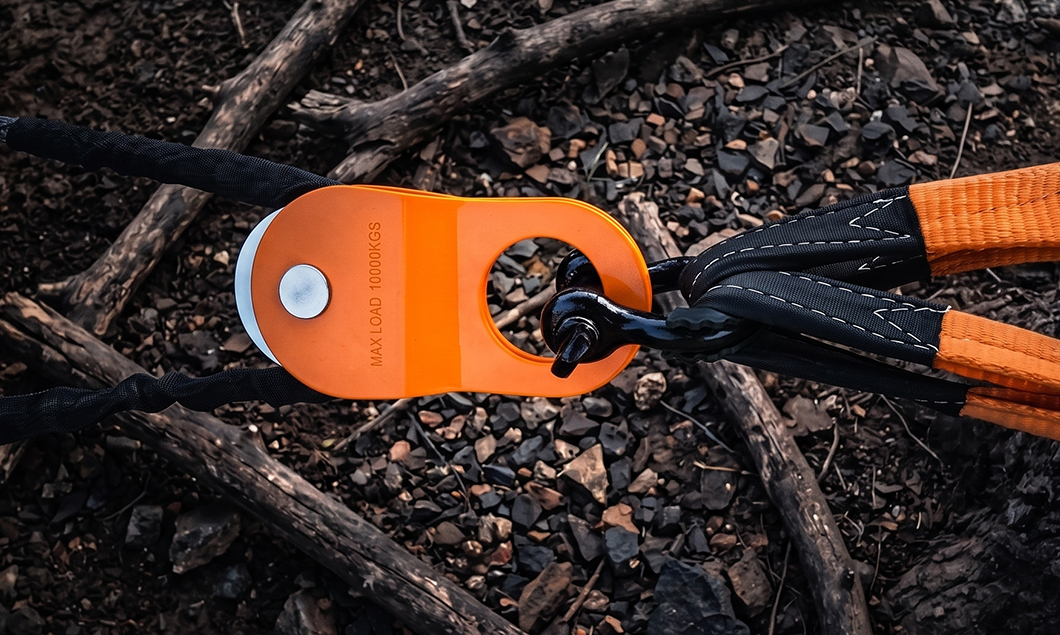

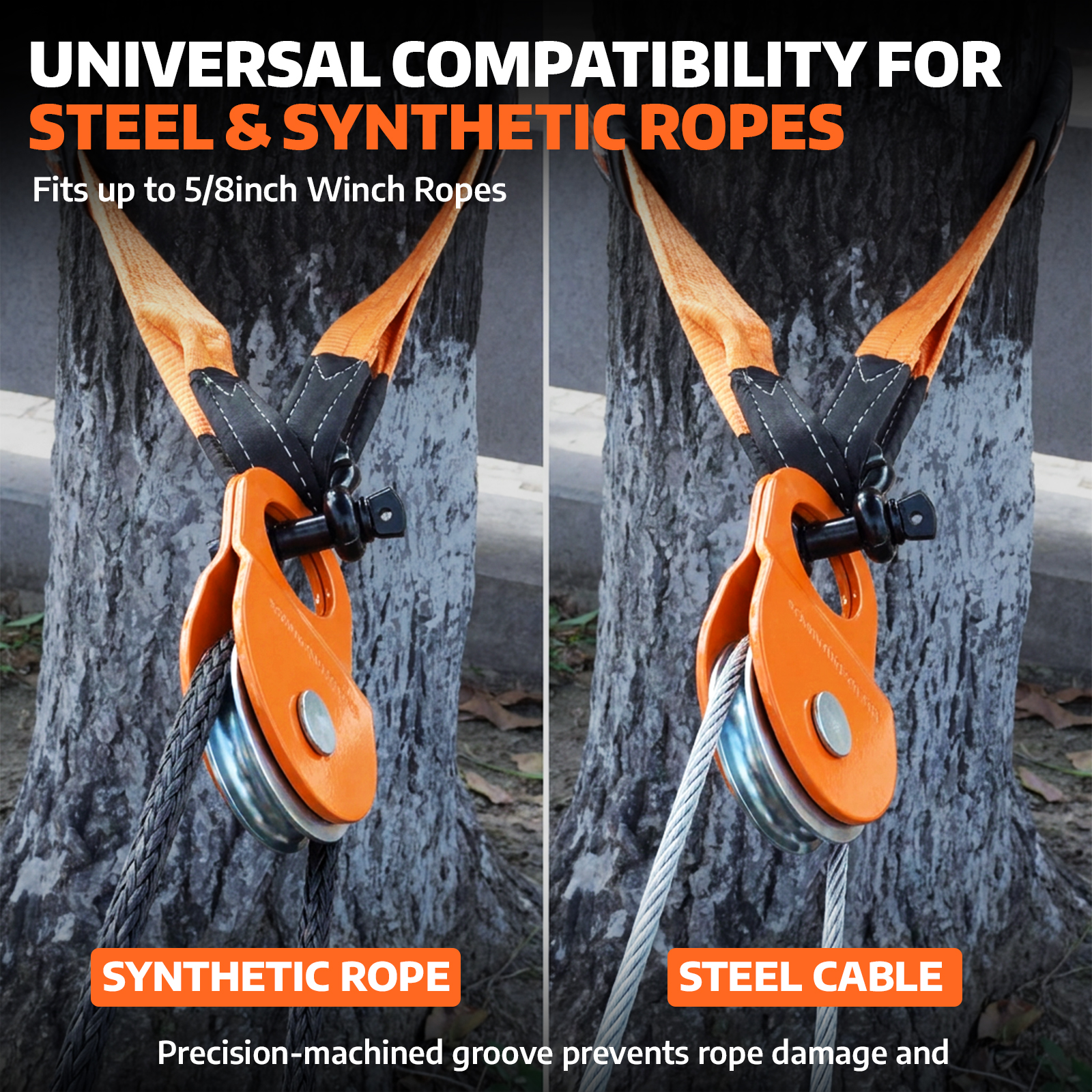

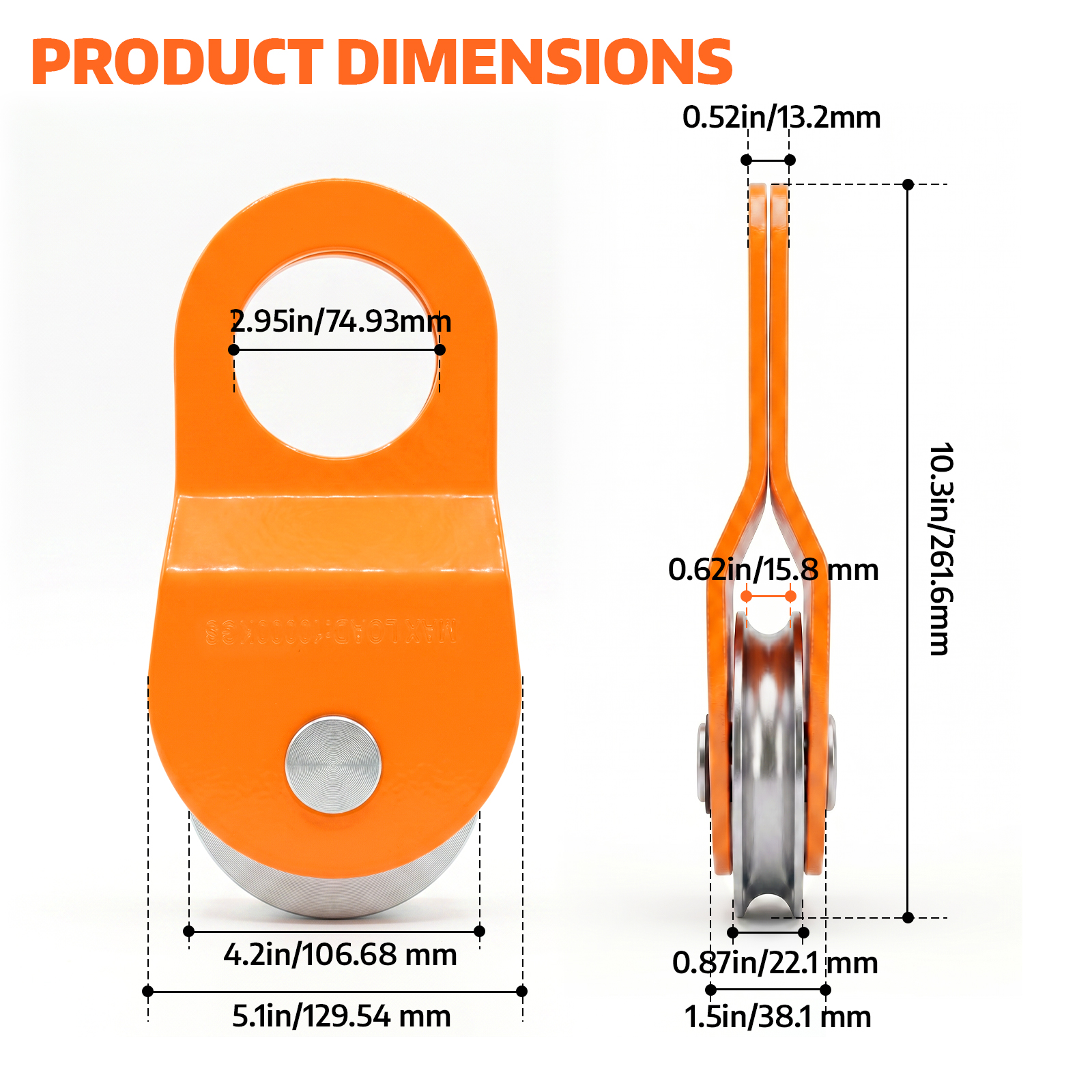

Cable, Rope And Ring Clearances: Steel cable from 7/32 inch to 3/8 inch runs this groove, and synthetic rope up to 5/8 inch rides the same sheave. The groove is cut wide so rope does not pinch or fray against the plate wall on an angled pull. The ring hole measures 2.95 inch, which takes the 3/4 inch screw pin shackle common on recovery kits. Rigging takes a moment: the side plates rotate on the pin, so the rope drops straight into the groove with no threading and no rope end to feed back through. The pin closes, the circlip seats, and the assembly is held square before the winch takes up line. A 2:1 setup uses one anchor point and one return line back to the vehicle.

Same Build On Every Batch: Production follows one fixed sequence: steel in, stamping, machining of the sheave groove and pin bore, powder coating, assembly, then a proof load check on the finished block. Every batch carries the same 22000 lb rating, the same 2.95 inch ring hole and the same groove clearance as the plates that came off the press. Steel stock is held for this model, so output continues as volumes step up from a few units to a full production run. The load check on each finished block sits inside the line at the point of assembly. The bearing pin, the circlip and the sheave are supplied as separate service parts, so a worn circlip is a part swap on the block itself.

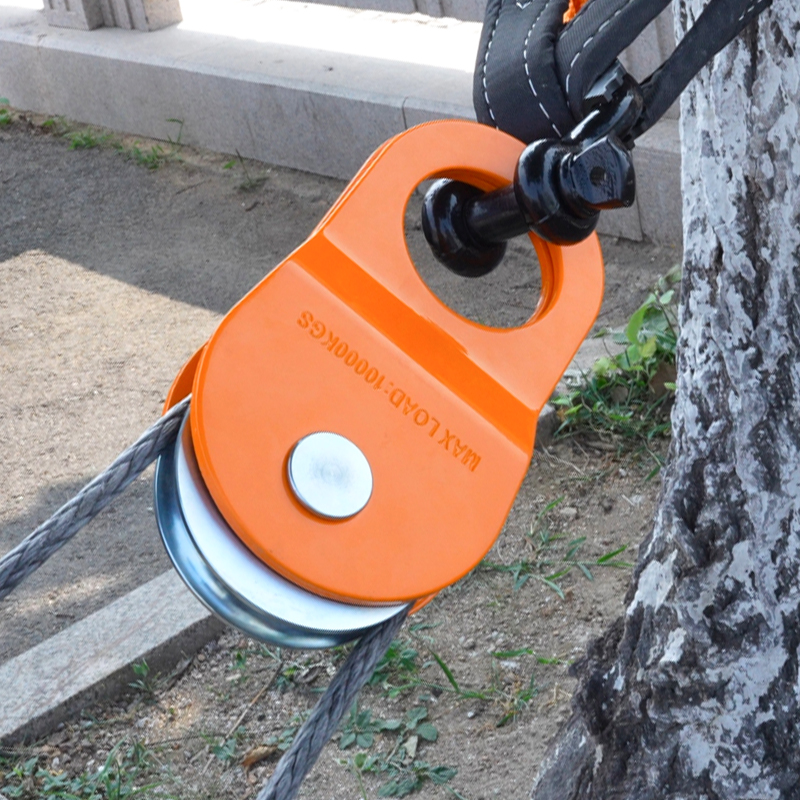

Rope Centered, Load Even: A closed circlip groove runs around the pin and centers the rope in the middle of the sheave. Centering matters: a line that rides against one plate wall loads a single side, and that is where rope damage and slippage begin. With the rope held central, tension passes through both side plates in equal measure and the load spreads across the full width of the groove. The pin is retained by the circlip so it cannot walk out under a shock load, and the machined groove keeps the line tracking straight when the pull comes in at an angle. The working load limit of 5 ton sits well below the 22000 lb ceiling of the assembly, so there is margin between the daily working range and the point the block is built to survive.

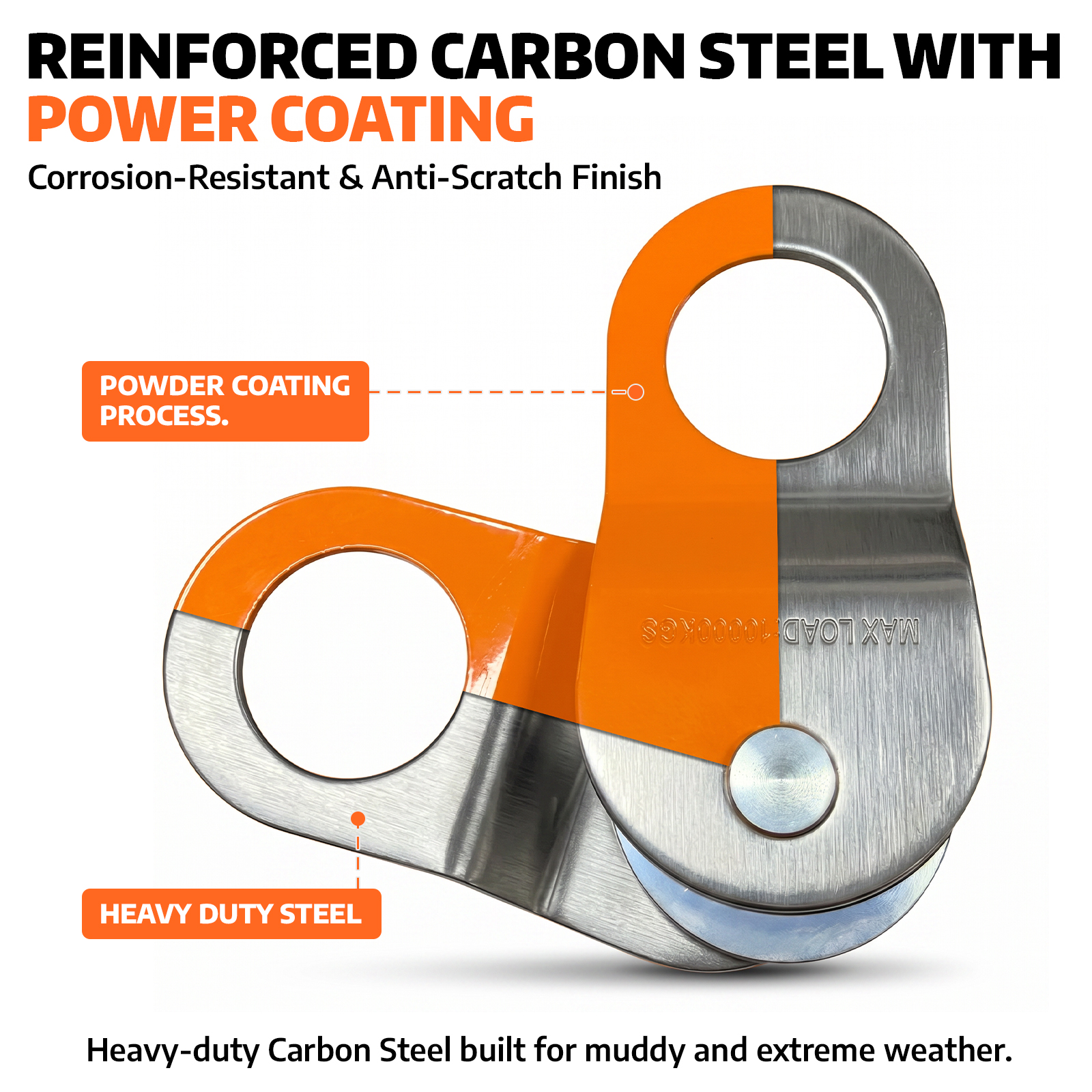

Coating That Faces Grit: The body is high strength carbon steel with a powder coating over every exposed face. Mud, road salt, blown sand and steady sun exposure meet that coating, and the plate edges keep their shape under it. Inside the block, the machined sheave groove holds its width, so rope and cable run on a smooth wall and wear spreads across the whole groove. The parts that take the most wear are separate parts: the bearing pin, the circlip and the sheave each carry their own part number and can be replaced on the block, so the plates keep doing their job while one small component is renewed.

Rigged Without Threading: Rigging starts with the side plates. They rotate on the mounting pin, which opens the groove wide enough that the rope or cable drops straight in. There is no rope end to feed back through a closed eye, and no need to unspool the winch line to get the block onto it. Once the line is seated, the pin closes, the circlip locks it, and the block is ready for a straight pull or a 2:1 double line rig. The 2.95 inch ring hole takes the screw pin shackle carried in a recovery kit, so no extra hardware is needed to hang the block from an anchor, and the whole assembly can be moved to a new angle between pulls.

Papers That Travel With The Order: The block is produced under an ISO quality management system, and the finished unit carries CE marking with 2006/42/EC machinery compliance. The assembly is checked to SAE J684, the standard applied to trailer coupling and towing hardware, and the SAE automotive engineering standard is listed for the proof load and tensile checks on the pin and the plates. Load test records, conformity paperwork and shipment documents are prepared as one file, so a container clears customs with papers that match the goods inside it. The same documentation set covers the steel cable and synthetic rope ratings printed on the product page.

Deep Capacity, Small Batch Production, Consolidated Freight: Our pulley block production model maintains steel plate inventory, with dedicated tooling for stamping, machining, coating and assembly across this size range. Output scales with order quantity.Standardized manufacturing includes precision-machined sheave grooves, full-surface powder coating, and proof load testing of all finished blocks before dispatch. In-stock finished goods support frequent small order releases.We leverage long-term freight forwarder partnerships for consolidated shipments. Mixed orders can share one freight arrangement to reduce unit shipping cost. Any damaged delivery or non-conforming unit can be traced via its test record for claim handling.

Q1. What is your MOQ ?

A:For stock :10 PC , Customization: Minimum order quantity ranges from 10 to 1000 pieces per product. Please consult our sales representatives for specific quantities.

Q2. Does the product meet European and American certification standards?

Our products are certified to European and American standards, including CE, ISO, and DOT certifications. Additionally, we hold dozens of design patent molds, ensuring market protection for your purchases or sales.

Q3.What are your advantages compared with others?

A: 1. With our own factory to manufacture the products, we can ensure timely products delivery

2.Owned factory, the same quality product. the best price

3. We have professional staffs, let you enjoy comfortable and effective communication

4. More efficient management in every process.

Q4.How do you control your quality?

A: 1.Selecting good steel material, producing follow the standard, proper inspection of products

2.100% finished product testing

3.Iso quality management system certificated factory

4.We accept inspection of products.

Q5. Can I order a sample with my own design /logo ?

Yes, our design team can create samples based on your sketches, images, or designs. If you have uncertainties about the product, we can first produce a 3D printed model for your review before proceeding with the formal sample production

Q6: Can I get a free sample ?

A:Because many customers want it, and development cost is too high, we cannot provide free samples, but when you place an order ,the sample cost can be refund to you .

Q7: What is your Sample Lead-Time ?

A: Within 5 working days after confirm all details. If busy season, about 7 working days.

Q8:Can I get a quote for the products I need?

Of course, you can send us an inquiry and provide product dimensions along with detailed images (front, side, back, internal structure, etc.). This will help us provide a more accurate quote. We would be happy to send you a quote.

Q9: What about the delivery day?

Typically 7 to 35 days, depending on the complexity and quantity of the product. You can confirm with us based on your specific prod，We accept 100% T/T payment before delivery, or 30% deposit and 70% before delivery.

Q10:Which kind of shipping way can choose ?

A: By air or by sea. If ship by express (UPS,DHL, FEDEX, EMS ), Shipping time 5-7 days ,except the EMS(EMS is the cheapest way but take more time ). By air : shipping time 12-15 days (the products can't less 22 KG) . By sea (has the different Time-based can choose, within 25 days, 30-35 days , 50-60 days ).some country can shipping by train or truck. you can decide suitable shipping way according to what your need.

Q11:Which kind of shipping way can choose ?

A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow

Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean.
